Euchner 161762E | MGB2-L1-BR-U-XA4S0-OB-R-161762 : Mgb2-L1-Br-U-Xa4S0-Ob-R-161762

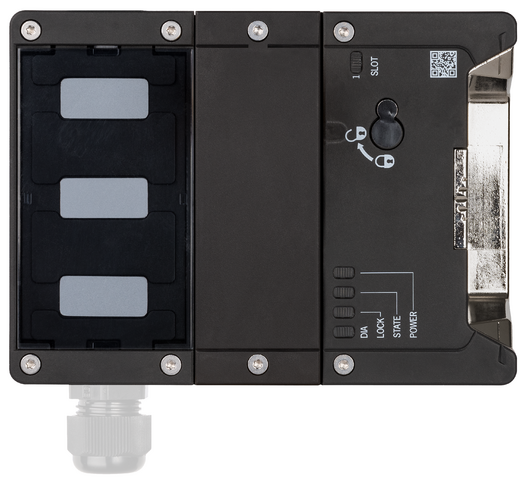

The MGB2-L1-BR-U-XA4S0-OB-R-161762 is a safety gate system designed to ensure secure access control in machinery operations.
Request a quote
Attribute | Value |
---|---|
Material: | Fiber glass reinforced plastic |
Rated insulation voltage Ui: | 75 V |
Connection Type: | 2x M4 screws |
Installation Orientation: | any |
Degree of protection: | IP65(Only in the screwed tight state with the specified base units.) |
Ambient temperature: | -30 … +55 °C |
Item designation: | MGB2-L1-BR-U-XA4S0-OB-R-161762 |
Gross weight: | 1,36kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Degree of contamination according to EN 60664-1: | 3 |
Turn-on time: | max. 80 ms |
Risk time according to EN 60947-5-3: | max. 50 ms |
Risk time according to EN 60947-5-3, extension for each additional device: | max. 10 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Test Pulse Duration: | max. 5 ms |
Test Pulse Interval: | min. 100 ms |
Ready Delay: | 5 s |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Rated impulse withstand voltage Uimp: | 1.5 kV |
Transponder coding: | Unicode |
Locking force FZh: | 2000 N |
Guard locking principle: | Closed-circuit current principle |
Color: | black |
Submodulbreite: | 1 |
Slotkonfiguration: | 1 |
Product Number | Variant Description |
---|---|
MGB2-L1-BR-U-XA4S0-OB-R-161762 : Mgb2-L1-Br-U-Xa4S0-Ob-R-161762 | MGB2-L1-BR-U-XA4S0-OB-L-161764 : Mgb2-L1-Br-U-Xa4S0-Ob-L-161764 |
MGB2-L1-BR-U-XA4S0-OB-R-161762 : Mgb2-L1-Br-U-Xa4S0-Ob-R-161762 | MGB2-L2-BR-U-XA4S0-OB-R-161766 : Mgb2-L2-Br-U-Xa4S0-Ob-R-161766 |
MGB2-L1-BR-U-XA4S0-OB-R-161762 : Mgb2-L1-Br-U-Xa4S0-Ob-R-161762 | MGB2-L2-BR-U-XA4S0-OB-L-161768 : Mgb2-L2-Br-U-Xa4S0-Ob-L-161768 |
