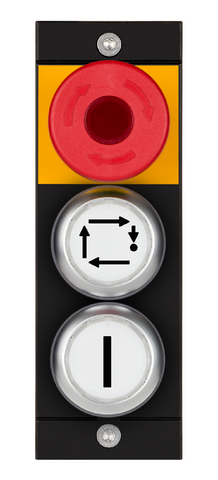

Euchner 161589E | MSM-1-P-CA-BPP-D5-161589 : Msm-1-P-Ca-Bpp-D5-161589
The MSM-1-P-CA-BPP-D5-161589 is a versatile actuator designed for precise control in various applications.
| Attribute | Value |
|---|---|
| Material: | Fiber glass reinforced plastic |
| Switching current: | 1 … 100 mA |
| Installation Orientation: | any |
| Degree of protection: | IP65 (IP20)(when installed) |
| Item designation: | MSM-1-P-CA-BPP-D5-161589 |
| Gross weight: | 0,115kg |
| ECLASS: | 27-24-26-05 Field bus, decentralized peripheral – function-/technology module |
| Current consumption: | max. 32 mA |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Switching voltage: | 5 … 24 V |
| Breaking capacity: | max. 0.25 W |
| LED Power Supply: | 24 V DC |
| Response time: | See operating instructions for bus module MBM-… or interlocking/locking module MGB2-I.-BR-… / MGB2-L.-BR-… |
| Submodulbreite: | 1 |
| Software ID (SW ID): | 9000001 |
| Product Number | Variant Description |
|---|---|
| MSM-1-P-CA-BPP-D5-161589 : Msm-1-P-Ca-Bpp-D5-161589 | (No others) |
