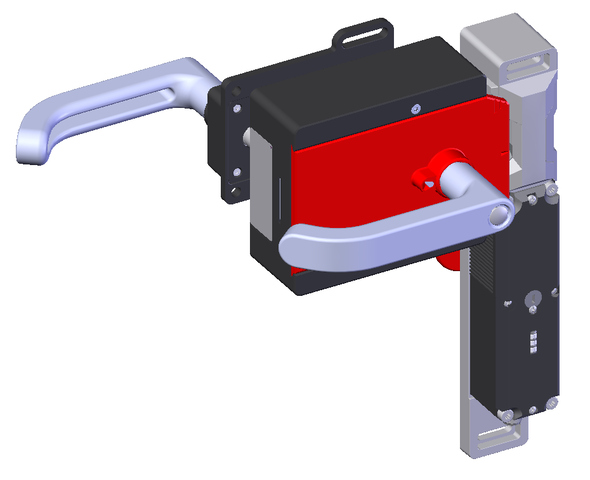

Euchner 161559E | MGBS-P-L1HE-AP-U-L-SA-161559 : Safety Switch Unicode

The MGBS-P-L1HE-AP-U-L-SA-161559 is a high-efficiency safety switch designed to meet stringent safety standards in diverse settings.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 50 V
    Approach speed: max. 20 m/min
    Connection Type: 1 plug connector M12, 8-pin
    Actuating force: 10 N
    Installation Orientation: Door hinge DIN left
    Mechanical Life: 1 x 10?
    Degree of protection: IP67/IP69/IP69K(screwed tight plug connector/mating component)
    Item designation: MGBS-P-L1HE-AP-U-L-SA-161559
    Gross weight: 4,6kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Turn-on time: max. 400 ms
    EMC protection requirements: Acc. to EN IEC 60947-5-3
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: 2 semiconductor outputs, p-switching, short circuit-proof
    Off-state Current Ir: max. 0.25 mA
    Test Pulse Duration: max. 0.3 ms(Applies to a load with C<= 30 nF and R<= 20 kohm)
    Test Pulse Interval: min. 100 ms
    Ready Delay: max. 1 s
    Switching frequency: max. 0.5 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Additional feature: Escape release actuated by pushing
    Overtravel: 5 mm
    Product version number: V1.0.0
    Rated impulse withstand voltage Uimp: 0.5 kV
    Locking force FZh: 3000 N(Fzh = Fmax/1.3, depending on the actuator used)
    Guard locking principle: Closed-circuit current principle
    Extraction Force: 20 N
    Retention Force: 20 N
    Locking force Fmax: 3900 N
    Power consumption: 6 W
    Solenoid Duty Cycle: 100 %
    The following applies to the approval according to UL: Operation only with UL Class 2 power supply or equivalent measures; see operating instructions
