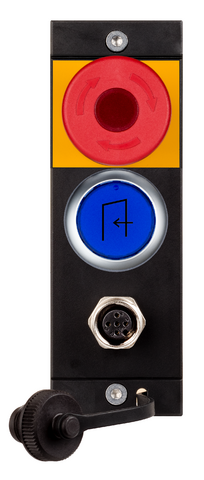

Euchner 160626E | MSM-1-R-CA-BPM-D2-160626 : Msm-1-R-Ca-Bpm-D2-160626
The MSM-1-R-CA-BPM-D2 is a robust modular switch designed for reliable performance in various industrial settings.
Request a quote
Attribute | Value |
---|---|
Material: | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
Switching current: | 1 … 100 mA |
Installation Orientation: | any |
Degree of protection: | IP65 (IP20)(when installed) |
Item designation: | MSM-1-R-CA-BPM-D2-160626 |
Gross weight: | 0,125kg |
ECLASS: | 27-24-26-05 Field bus, decentralized peripheral – function-/technology module |
Current consumption: | max. 38 mA |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Switching voltage: | 5 … 24 V |
Breaking capacity: | max. 0.25 W |
LED Power Supply: | 24 V DC |
Response time: | See operating instructions for bus module MBM-… or interlocking/locking module MGB2-I.-BR-… / MGB2-L.-BR-… |
Submodulbreite: | 1 |
Software ID (SW ID): | 9000005 |
Product Number | Variant Description |
---|---|
MSM-1-R-CA-BPM-D2-160626 : Msm-1-R-Ca-Bpm-D2-160626 | (No others) |
