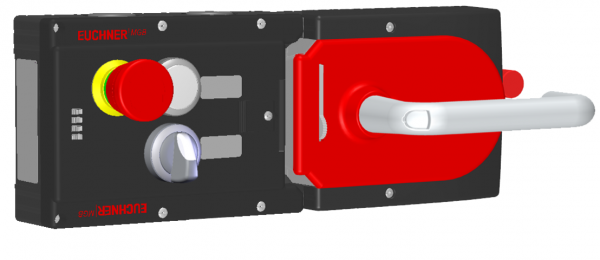

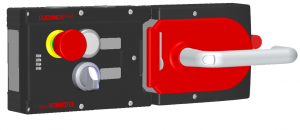

Euchner 160589E | MGB-L1HE-ARA-R-160589 : Multifunctional Gate Box Complete

MGB-L1HE-ARA-R-160589 is a complete multifunctional gate box that provides comprehensive control and safety solutions.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 30 V
    Switching current: 1 … 100 mA
    Connection Type: Cable entries M20x1.5
    Installation Orientation: Door hinge DIN right
    Degree of protection: IP65
    Item designation: MGB-L1HE-ARA-R-160589
    Gross weight: 2,897kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Risk time according to EN 60947-5-3: max. 350 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 5 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 1 ms
    Test Pulse Interval: min. 100 ms
    Switching frequency: 0.25 Hz
    Additional feature: incl. lens set, ID no. 120344
    Switching voltage: 5 … 24 V
    Product version number: V4.0.0
    Occupancy diagram: L1
    Rated impulse withstand voltage Uimp: 1.5 kV
    Transponder coding: Unicode
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Product Number Variant Description
    MGB-L1HE-ARA-R-160589 : Multifunctional Gate Box Complete (No others)
