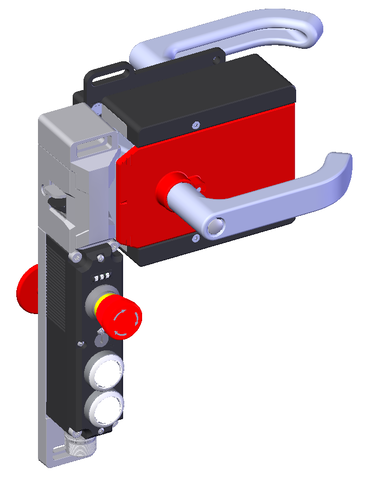

Euchner 160520E | MGBS-P-L1HE-AR-U-R-SH-160520 : Safety Switch Unicode
$3,267.78
Explore the Euchner 160520E | MGBS-P-L1HE-AR-U-R-SH-160520 : Safety Switch Unicode. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 160520E |
| Connection Type: | 1 plug connector M23, 19-pin, RC18 |
| Installation Orientation: | Door hinge DIN right |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65(In the inserted and screwed tight state) |
| Order Number: | 160520 |
| Item designation: | MGBS-P-L1HE-AR-U-R-SH-160520 |
| Gross weight: | 4,661kg |
| Customs tariff number: | 85371098 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Mechanical Life: | 1 x 10? |
| Product version number: | V1.0.0 |
| Rated insulation voltage Ui: | 50 V |
| Rated impulse voltage Uimp: | 0.5 kV |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Safety Class: | III |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | max. 0.5 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Locking force FZh: | 3000 N(Fzh = Fmax/1.3, depending on the actuator used) |
| Guard locking principle: | Closed-circuit current principle |
| Switching voltage: | 5 … 24 V |
| Approach Speed: | max. 20 m/min |
| Extraction Force: | 20 N |
| Actuating force: | 10 N |
| Retention Force: | 20 N |
| Overtravel: | 5 mm |
| Output Type: | 2 semiconductor outputs, p-switching, short circuit-proof |
| Breaking capacity: | max. 0.25 W |
| Operating voltage: | UB V |
| Operating current: | 1 … 50 mA |
| Off-state Current Ir: | max. 0.25 mA |
| Test Pulse Duration: | max. 1.0 ms(Applies to a load with C<= 30nF and R<= 20kOhm) |
| Risk time according to EN 60947-5-3: | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: | max. 5 ms |
| Test Pulse Interval: | min. 140 ms |
| Turn-on time: | max. 400 ms |
| Ready Delay: | 8 s |
| Power consumption: | 6 W |
| Solenoid Duty Cycle: | 100 % |
| Locking force Fmax: | 3900 N |
| Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
