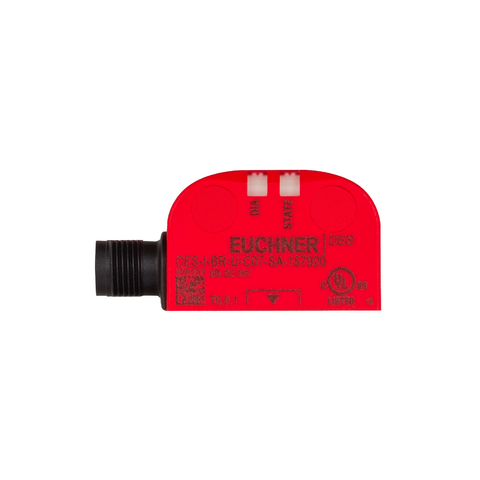

Euchner 160076E | CES-I-BP-M-C07-SB-160076 : Safety Switch Multicode
The CES-I-BP-M-C07-SB-160076 is a versatile safety switch designed for use in various industrial applications, ensuring reliable operation and safety.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 1.5 kV |
Switching current: | 1 … 150 mA |
Connection Type: | M12 plug connector, 5-pin |
Installation Orientation: | any |
Degree of protection: | IP65/IP67/IP69/IP69K |
Item designation: | CES-I-BP-M-C07-SB-160076 |
Gross weight: | 0,05kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
Mounting type: | non-flush on metal |
EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
Risk time according to EN 60947-5-3: | max. 125 ms |
Safety Class: | III |
Current consumption: | 40 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Rated Conditional Short-circuit Current: | 100 A |
Discrepancy time: | max. 10 ms |
Off-state Current Ir: | max. 0.25 mA |
Test Pulse Duration: | 0.3 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
Test Pulse Interval: | ca 100 ms |
Tightening torque: | max. 0.8 Nm |
Ready Delay: | 5 s |
Switching frequency: | max. 1 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures |
Additional feature: | Caps included |
Switching hysteresis: | 1 … 2 mm |
Dimensions: | 40 x 26.5 x 18 |
Operating altitude: | max. 4 000 m |
Product Number | Variant Description |
---|---|
CES-I-BP-M-C07-SB-160076 : Safety Switch Multicode | (No others) |
