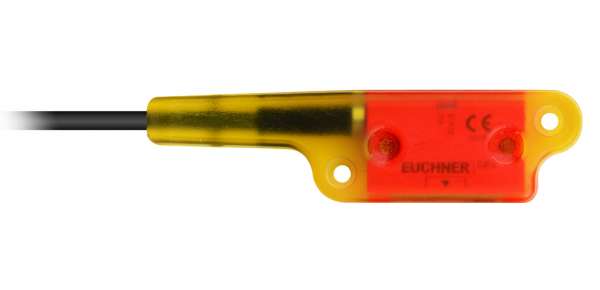

Euchner 158631E | CES-I-AP-M-C14-U20-158631 : Safety Switch
$860.00
Explore the Euchner 158631E | CES-I-AP-M-C14-U20-158631 : Safety Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 158631E |
| Connection Type: | Connecting cable PUR, length 20 m |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65/IP67/IP69/IP69K |
| Order Number: | 158631 |
| Item designation: | CES-I-AP-M-C14-U20-158631 |
| Gross weight: | 0,08kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Rated insulation voltage Ui: | 30 V |
| Rated impulse voltage Uimp: | 0.5 kV |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Safety Class: | III |
| Current consumption: | max. 35 mA(without taking into account the load currents on the monitoring output and the safety outputs) |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | max. 1 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Output Type: | 2 semiconductor outputs, p-switching, short circuit-proof |
| Off-state Current Ir: | max. 0.25 mA |
| Test Pulse Duration: | max. 0.3 ms(Applies to a load with C<= 30nF and R<= 20kOhm) |
| Mounting type: | Surface mounting on metal |
| Discrepancy time: | max. 10 ms |
| Risk time according to EN 60947-5-3: | max. 260 ms |
| Test Pulse Interval: | min. 100 ms |
| Ready Delay: | 10 s |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Rated Conditional Short-circuit Current: | 100 A |
