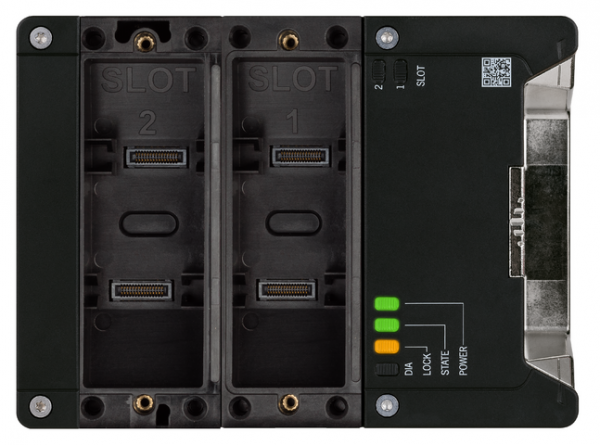

Euchner 157955E | MGB2-I-MLI-U-Y0000-JJ-157955 : Mgb2-I0-Mli-U-Y0000-Jj-157955
The MGB2-I-MLI-U-Y0000-JJ-157955 offers advanced functionality for secure and efficient operation in automation systems.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Degree of protection: | IP65(In the closed state when the connection cables, connecting cables and submodules are correctly mounted; assembly.) |
Item designation: | MGB2-I-MLI-U-Y0000-JJ-157955 |
Gross weight: | 1,01kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
EMC protection requirements: | EMC Directive 2014/30/EU |
Safety Class: | III |
Current consumption: | max. 75 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Transponder coding: | Unicode |
Response time: | See operating instructions for bus module MBM-… |
Slotkonfiguration: | 1,1 |
Product Number | Variant Description |
---|---|
MGB2-I-MLI-U-Y0000-JJ-157955 : Mgb2-I0-Mli-U-Y0000-Jj-157955 | (No others) |
