| Material: |
Fiber glass reinforced plastic |
| Rated insulation voltage Ui: |
75 V |
| Connection Type: |
2x M4 screws |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Degree of protection: |
IP65(Only in the screwed tight state with the specified base units.) |
| Ambient temperature: |
-30 … +55 °C |
| Item designation: |

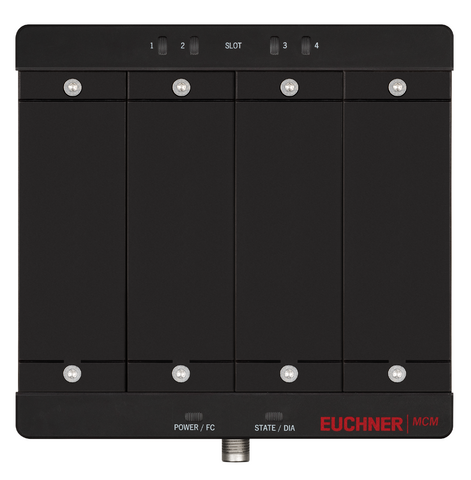

MCM-MLI-YA4A4A4A4-JA-157774 |
| Gross weight: |
1,244kg |
| ECLASS: |
27-24-26-03 Field bus, decentralized peripheral – module carrier |
| Rated voltage: |
30 V |
| Degree of contamination according to EN 60664-1: |
3 |
| Type Specification: |
M12 EN 61076-2-101 / A-coded |
| Number of pins: |
5 |
| Insertion Cycles: |
100 |
| EMC protection requirements: |
EMC Directive 2014/30/EU |
| Safety Class: |
III |
| Current consumption: |
max. 75 mA |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Switching frequency: |
0.25 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Rated impulse withstand voltage Uimp: |
0.5 kV |
| PFHD: |
2.82 x 10-9(Fixed failure rate without consideration of faults in wearing parts) |
| Color: |
black |
