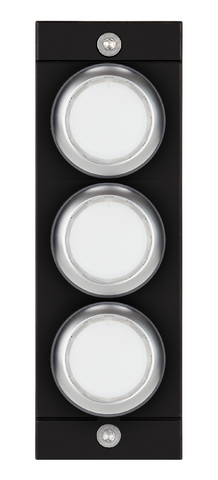

Euchner 157218E | MSM-1-P-CA-RRR-C5-157218 :
The MSM-1-P-CA-RRR-C5-157218 is a versatile safety switch module suitable for various industrial applications.
| Attribute | Value |
|---|---|
| Material: | Fiber glass reinforced plastic |
| Switching current: | 5 … 10 mA |
| Installation Orientation: | any |
| Degree of protection: | IP65 (IP20)(when installed) |
| Item designation: | MSM-1-P-CA-RRR-C5-157218 |
| Gross weight: | 0,1kg |
| ECLASS: | 27-24-26-05 Field bus, decentralized peripheral – function-/technology module |
| Current consumption: | max. 36 mA |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Additional feature: | incl. lens set, ID no. 163284 |
| Switching voltage: | 24 V |
| Breaking capacity: | max. 0.25 W |
| LED Power Supply: | 24 V DC |
| Submodulbreite: | 1 |
| Software ID (SW ID): | 157218 |
| Product Number | Variant Description |
|---|---|
| MSM-1-P-CA-RRR-C5-157218 : | (No others) |
