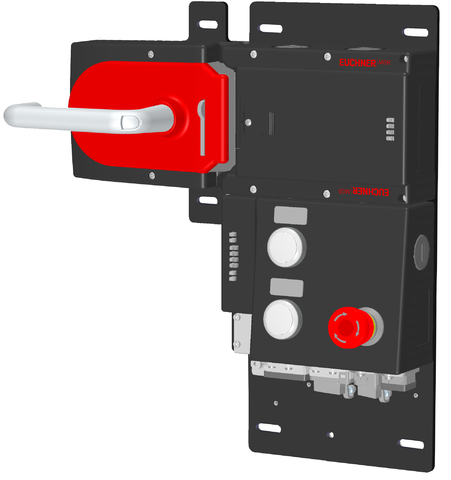

Euchner 156882E | MGB-L2HB-PNA-L-156882 : Mgb-L2Hb-Pna-L-156882
The MGB-L2HB-PNA-L-156882 combines advanced safety technology with a user-friendly interface, perfect for ensuring workplace safety.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Installation Orientation: | Door hinge DIN left |
Degree of protection: | IP54 |
Item designation: | MGB-L2HB-PNA-L-121845 |
Gross weight: | 5,074kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
EMC protection requirements: | In accordance with EN 61000-4 and EN 61326-3-1 |
Safety Class: | III |
Current consumption: | max. 500 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Additional feature: | incl. lens set, ID no. 120344 |
Product version number: | V3.30.10 |
Transponder coding: | Unicode |
Locking force FZh: | 2000 N |
Guard locking principle: | Open-circuit current principle |
Rated operating distances Sn: | 20 mm(Only applies for use on sliding doors with deactivated guard lock monitoring) |
Bus Data Protocol: | Profinet (IEC 61158 type 10) |
Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
Product Number | Variant Description |
---|---|
MGB-L2HB-PNA-L-156882 : Mgb-L2Hb-Pna-L-156882 | (No others) |
