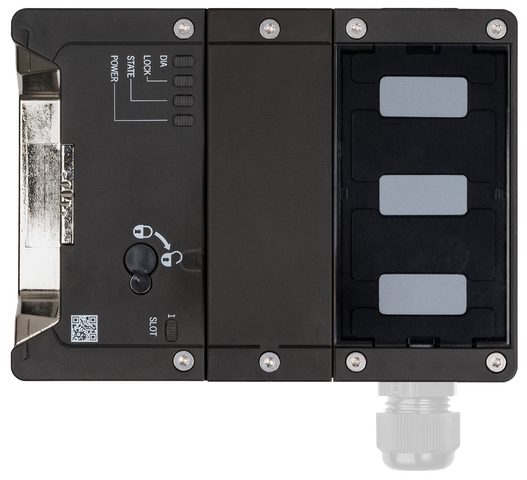

Euchner 156736E | MGB2-A-C-L-BP/BR-156736 : Multifunctional Gate Box

The MGB2-A-C-L-BP/BR-156736 is a multifunctional gate box that provides enhanced safety and control features for industrial environments.

Request a quote

    Attribute Value
    Material: Fiber glass reinforced plastic
    Rated insulation voltage Ui: 75 V
    Connection Type: 2x M4 screws
    Installation Orientation: any
    Degree of protection: IP65(Only in the screwed tight state with the specified base units.)
    Ambient temperature: -30 … +55 °C
    Item designation: MGB2-L1-BR-U-XA4S0-OY-L-166332
    Gross weight: 1,24kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Degree of contamination according to EN 60664-1: 3
    Turn-on time: max. 80 ms
    Risk time according to EN 60947-5-3: max. 50 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 10 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 5 ms
    Test Pulse Interval: min. 100 ms
    Ready Delay: 5 s
    Switching frequency: 0.25 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Rated impulse withstand voltage Uimp: 1.5 kV
    Transponder coding: Unicode
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Color: black
    Submodulbreite: 1
    Slotkonfiguration: 1
    Product Number Variant Description
    MGB2-A-C-L-BP/BR-156736 : Multifunctional Gate Box (No others)
