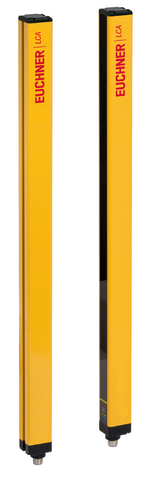

Euchner 156670E | LCA-2TR-50-1810-AP-156670 : Light Curtain
The LCA-2TR-50-1810-AP-156670 offers advanced safety features in the form of a light curtain, ideal for safeguarding machine operations and personnel.
Request a quote
Attribute | Value |
---|---|
Connection Type: | Plug connector M12 (5-pin transmitter/8-pin receiver) |
Installation Orientation: | any |
Degree of protection: | IP65/IP67 |
Ambient temperature: | -30 … +55 °C |
Item designation: | LCA-2TR-50-1810-AP-156670 |
Gross weight: | 5,523kg |
ECLASS: | 27-27-09-10 Light curtain |
Operating voltage DC: | 24 V DC -20% … +20% |
LED Display: | yes(Self-diagnostics and status) |
Response time: | 13 ms |
Dimensions: | 28×30 mm(in cross-section) |
Receiver power consumption: | 2 W |
Transmitter power consumption: | 1 W |
Cascadable: | no |
Muting possible: | in combination with external sensors and an evaluation unit |
Number of safety outputs: | 2 static, self-monitoring PNP safety outputs(with short-circuit and overload protection) |
Resolution: | 50 mm |
Height of the protective field: | 1810 mm |
Height of the sensor: | 1863 mm |
maximum length of connecting cables: | 100 m |
Range of the protective field: | 12000 mm |
ESPE Type: | 2(according to EN 61496-1) |
Product Number | Variant Description |
---|---|
LCA-2TR-50-1810-AP-156670 : Light Curtain | (No others) |
