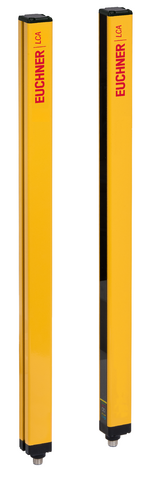

Euchner 156646E | LCA-2TR-30-1810-AP-156646 : Light Curtain
$15,151.11
Explore the Euchner 156646E | LCA-2TR-30-1810-AP-156646 : Light Curtain. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 156646E |
| LED Display: | Yes(Self-diagnostics and status) |
| Receiver power consumption: | 2 W |
| Transmitter power consumption: | 1 W |
| Operating voltage DC: | 24 V DC -20% … +20% |
| Cascadable: | No |
| Muting possible: | in combination with external sensors and an evaluation unit |
| Dimensions: | 28×30 mm(in cross-section) |
| Connection Type: | Plug connector M12 (5-pin transmitter/8-pin receiver) |
| Number of safety outputs: | 2 static, self-monitoring PNP safety outputs(with short-circuit and overload protection) |
| Resolution: | 30 mm |
| Installation Orientation: | any |
| Height of the protective field: | 1810 mm |
| Height of the sensor: | 1863 mm |
| Storage temperature: | -30 … 70 °C |
| maximum length of connecting cables: | 100 m |
| Response time: | 22.5 ms |
| Range of the protective field: | 12000 mm |
| Degree of protection: | IP65/IP67 |
| Ambient temperature: | -30 … 55 °C |
| ESPE Type: | 2(according to EN 61496-1) |
| Order Number: | 156646 |
| Item designation: | LCA-2TR-30-1810-AP-156646 |
| Gross weight: | 5,523kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-09-10 Light curtain |
