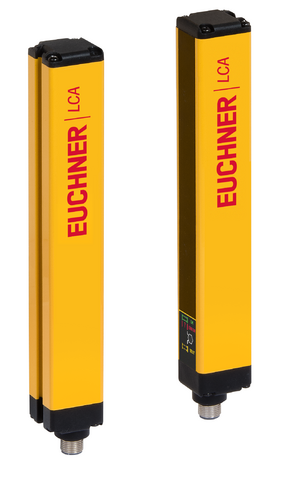

Euchner 156524E | LCA-4TR-30-160-AP-156524 : Light Curtain

The LCA-4TR-30-160-AP-156524 is a high-performance light curtain designed for safety applications, providing reliable detection and protection in hazardous areas.

Request a quote

    Attribute Value
    Connection Type: Plug connector M12 (5-pin transmitter/8-pin receiver)
    Installation Orientation: any
    Degree of protection: IP65/IP67
    Ambient temperature: -30 … +55 °C
    Item designation: LCA-4TR-30-160-AP-156524
    Gross weight: 0,835kg
    ECLASS: 27-27-09-10 Light curtain
    Operating voltage DC: 24 V DC -20% … +20%
    LED Display: yes(Self-diagnostics and status)
    Response time: 3 ms
    Dimensions: 28×30 mm(in cross-section)
    Receiver power consumption: 2 W
    Transmitter power consumption: 1 W
    Cascadable: no
    Muting possible: in combination with external sensors and an evaluation unit
    Number of safety outputs: 2 static, self-monitoring PNP safety outputs(with short-circuit and overload protection)
    Resolution: 30 mm
    Height of the protective field: 160 mm
    Height of the sensor: 213 mm
    maximum length of connecting cables: 100 m
    Range of the protective field: 20000 mm
    ESPE Type: 4(according to EN 61496-1)
