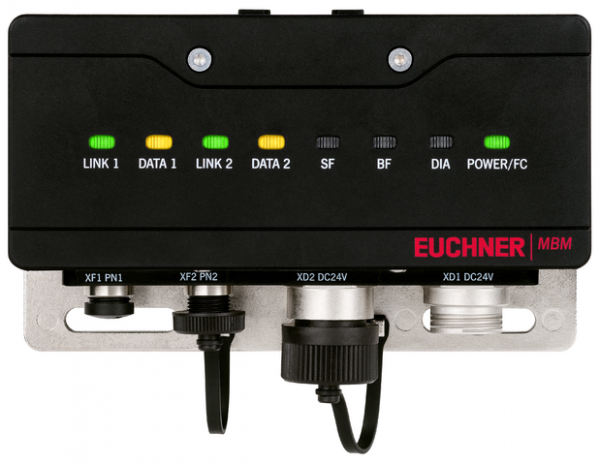

Euchner 156312E | MBM-PN-S4-MLI-3B-156312 , Multifunctional Gate Box
$3,652.22
Explore the Euchner 156312E | MBM-PN-S4-MLI-3B-156312 , Multifunctional Gate Box. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 156312E |
| Connection Type: | Male plug |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65(In the closed state when the connection cables, connecting cables and submodules are correctly mounted.) |
| Order Number: | 156312 |
| Item designation: | MBM-PN-S4-MLI-3B-156312 |
| Gross weight: | 0,875kg |
| Customs tariff number: | 85389099990 |
| ECLASS: | 27-24-26-07 Field bus, decentralized peripheral – basic device |
| Rated insulation voltage Ui: | 75 V |
| Rated impulse voltage Uimp: | 0.5 kV |
| EMC protection requirements: | EMC Directive 2014/30/EU |
| Safety Class: | III |
| Current consumption: | max. 150 mA |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Bus Data Protocol: | Profinet (IEC 61158 type 10) |
| Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
| Type Specification: | M12 EN 61076-2-101 / A-coded |
| Number of pins: | 5 |
| Insertion Cycles: | 100 |
