Euchner 136961E | C-M12F05-05X034PU10,0-GA-136961 :

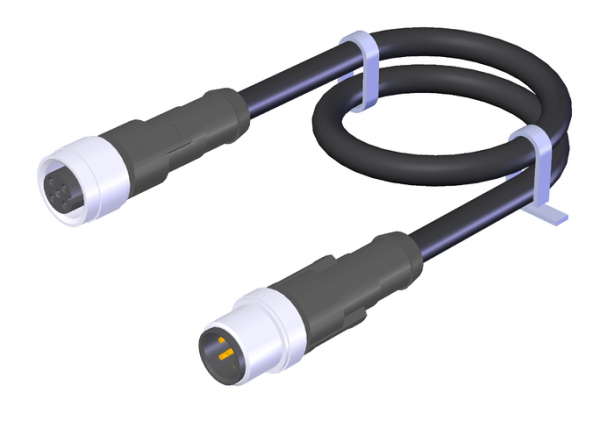

The C-M12F05-05X034PU10,0-GA-136961 is a robust connector designed for reliable electrical connections in industrial environments.
| Attribute | Value |
|---|---|
| Connection Type: | Male plug |
| Degree of protection: | IP67(in the inserted state) |
| Item designation: | C-M12F05-05X034PU10,0-M12M05-119947 |
| Gross weight: | 0,372kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 5 |
| Plug lock: | Screw connection |
| Insertion Cycles: | 100 |
| Tightening torque: | 0.5 Nm |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -25 … +80 °C |
| Cable ambient temperature (static): | -25 … +80 °C |
| Cable length: | 10 m |
| Conductor Cross-section: | 0.34 mm² |
| Number of conductors: | 5 |
| Fire Behavior: | flame retardant |
| Cable Type: | straight |
| Sheath Color: | black |
| Drag chain suitability: | yes |
| Halogen-free: | yes(according to DIN VDE 0472 part 815) |
| Product Number | Variant Description |
|---|---|
| C-M12F05-05X034PU10,0-GA-136961 : | C-M12F05-05X034PU05,0-GA-136960 : |
| C-M12F05-05X034PU10,0-GA-136961 : | C-M12F05-05X034PU05,0-GA-136962 : |
| C-M12F05-05X034PU10,0-GA-136961 : | C-M12F05-05X034PU10,0-GA-136963 : |
