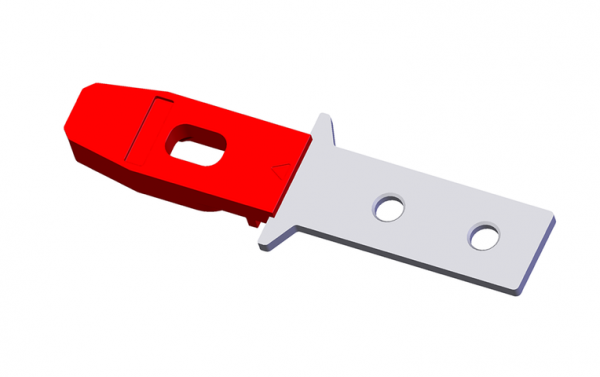

Euchner 136826E | A-C-H-G-LS-EX-136826 : Actuator

The A-C-H-G-LS-EX-136826 is an actuator that provides precise control and movement in automated systems.

Request a quote

    Attribute Value
    Mechanical Life: 1 x 10?
    Degree of protection: IP65/IP66
    Ambient temperature: -20 … +55 °C
    Item designation: A-C-H-G-LS-EX-136826
    Gross weight: 0,038kg
    ECLASS: 27-27-24-04 Actuator for safety-related proximity switch
    Power Supply: Inductive via read head
    Overtravel: 5 mm
    Locking force FZh: 3000 N(Fzh = Fmax/1.3)
    Locking force Fmax: 3900 N
    Explosion protection in accordance with ATEX Directive 2024/34/EU: II3G Ex ic IIC T4 Gc / II3D Ex ic IIIC T110°C Dc X
    Product Number Variant Description
    A-C-H-G-LS-EX-136826 : Actuator (No others)
