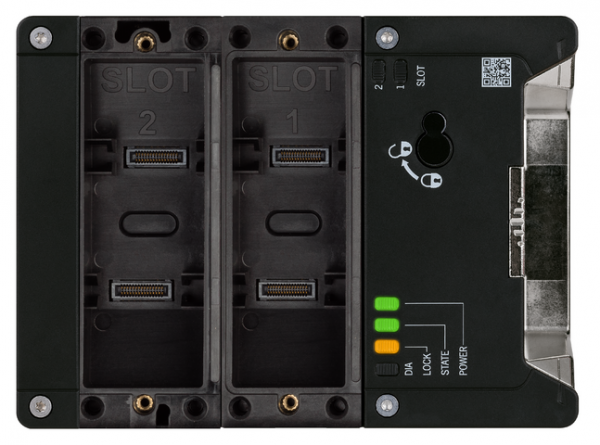

Euchner 136776E | MGB2-L1-MLI-U-Y0000-BJ-136776 : Locking Module
The MGB2-L1-MLI-U-Y0000-BJ-136776 is a locking module that secures access to machinery, ensuring safe operation.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Degree of protection: | IP65(In the closed state when the connection cables, connecting cables and submodules are correctly mounted; assembly.) |
Item designation: | MGB2-L1-MLI-U-Y0000-BJ-136776 |
Gross weight: | 1,19kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
EMC protection requirements: | EMC Directive 2014/30/EU |
Safety Class: | III |
Current consumption: | max. 350 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Transponder coding: | Unicode |
Locking force FZh: | 2000 N |
Guard locking principle: | Closed-circuit current principle |
Response time: | See operating instructions for bus module MBM-… |
Slotkonfiguration: | 1,1 |
Product Number | Variant Description |
---|---|
MGB2-L1-MLI-U-Y0000-BJ-136776 : Locking Module | (No others) |
