| Rated insulation voltage Ui: |
75 V |
| Installation Orientation: |
Door hinge DIN left |
| Degree of protection: |
IP54 |
| Item designation: |

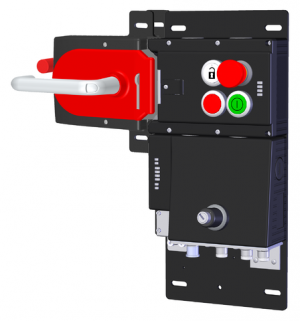

MGB-L1HEB-EIA-L-136465 |
| Gross weight: |
7,07kg |
| ECLASS: |
27-27-24-05 Safety-related transponder switch with guardlocking |
| EMC protection requirements: |
In accordance with EN 61000-4 and EN 61326-3-1 |
| Safety Class: |
III |
| Current consumption: |
max. 500 mA |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Switching frequency: |
0.25 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Additional feature: |
with mounting plate and automatic lockout mechanism |
| Product version number: |
V1.5 |
| Rated impulse withstand voltage Uimp: |
0.5 kV |
| Transponder coding: |
Unicode |
| Locking force FZh: |
2000 N |
| Guard locking principle: |
Closed-circuit current principle |
| Performance Level: |
PL e |
| Category: |
4 |
| PFHD: |
3.37 x 10-9(Fixed failure rate without consideration of faults in wearing parts.) |
| Mission time: |
20 y |
| Bus Data Protocol: |
Ethernet/IP |
| Diagnostic Coverage (DC): |
99 % |
| Safety Data Protocol: |
CIP Safety |
| Safety Integrity Level: |
SIL 3 (EN 620612005) |
