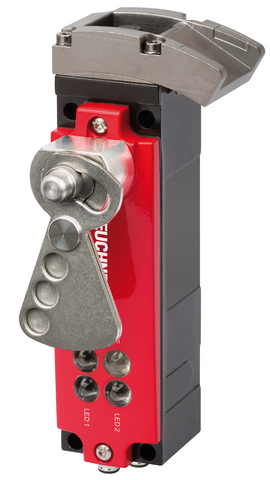

Euchner 129540E | CET3-AP-CRA-AH-50X-SI-C2469-129540 : Safety Switch
CET3-AP-CRA-AH-50X-SI-C2469-129540 is a highly reliable safety switch that provides essential protection for industrial applications.
Request a quote
Attribute | Value |
---|---|
Approach speed: | max. 20 m/min |
Connection Type: | 2 plug connector M12, 5-pin |
Installation Orientation: | any |
Mechanical Life: | 2 x 10? |
Degree of protection: | IP67(When inserted and secured) |
Item designation: | CET3-AP-CRA-AH-50X-SI-C2469-129540 |
Gross weight: | 1,405kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Turn-on time: | 400 ms |
EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
Risk time according to EN 60947-5-3: | max. 400 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | 2 semiconductor outputs, p-switching, short circuit-proof |
Off-state Current Ir: | max. 0.25 mA |
Test Pulse Duration: | max. 0.3 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
Ready Delay: | 1 s |
Switching frequency: | max. 0.5 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
Locking force FZh: | 5000 N |
Guard locking principle: | Closed-circuit current principle |
Connecting cable: | 30V DC, 2A(for UL requirement UL category code (CYJV/CYJV7)) |
Locking force Fmax: | 6500 N |
Solenoid Duty Cycle: | 100 % |
Switching delay from state change: | max. 700 ms |
Degree of freedom X: | ±5 mm |
Degree of freedom Y: | ±5 mm |
Degree of freedom Z: | ±4 mm |
Product Number | Variant Description |
---|---|
CET3-AP-CRA-AH-50X-SI-C2469-129540 : Safety Switch | CET3-AP-CRA-AH-50F-SI-C2469-129541 : Safety Switch |
