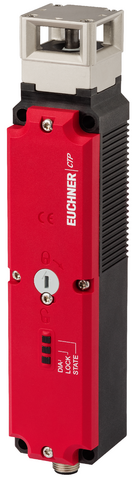

Euchner 124729E | CTP-L2-AP-M-HA-AZ-SA-124729 : Safety Switch
This Safety Switch provides essential safety features to prevent unauthorized access and ensure safe operation of machinery.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 50 V |
Rated impulse voltage Uimp: | 0.5 kV |
Approach speed: | max. 20 m/min |
Connection Type: | 1 plug connector M12, 8-pin |
Actuating force: | 10 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Degree of protection: | IP67/IP69/IP69K(When inserted and secured) |
Item designation: | CTP-L2-AP-M-HA-AZ-SA-124729 |
Gross weight: | 0,538kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Turn-on time: | max. 400 ms |
EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | 2 semiconductor outputs, p-switching, short circuit-proof |
Off-state Current Ir: | max. 0.25 mA |
Test Pulse Duration: | max. 0.3 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
Test Pulse Interval: | min. 100 ms |
Ready Delay: | max. 1 s |
Switching frequency: | max. 0.5 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
Overtravel: | 5 mm |
Locking force FZh: | 3000 N(Fzh = Fmax/1.3, depending on the actuator used) |
Guard locking principle: | Open-circuit current principle |
Extraction Force: | 20 N |
Retention Force: | 20 N |
Locking force Fmax: | 3900 N |
Power consumption: | 6 W |
Solenoid Duty Cycle: | 100 % |
