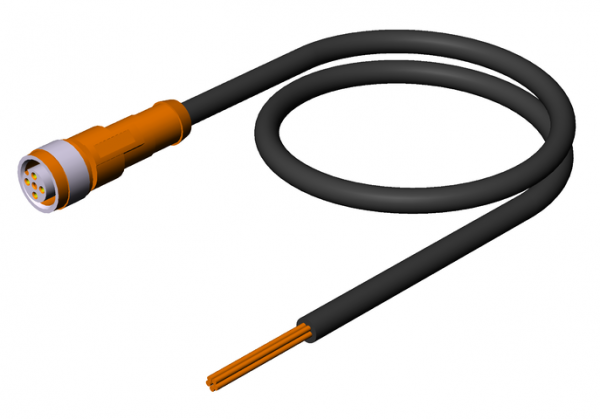

Euchner 124054E | C-M12F05-05X034PU25,0-MA-124054 : Connecting Cable

Connecting Cable that facilitates secure and efficient electrical connections.

Request a quote

    Attribute Value
    Connection Type: Female plug
    Degree of protection: IP67(in the screwed tight state)
    Item designation: C-M12F05-05X034PU25,0-MA-124054
    Gross weight: 1,456kg
    ECLASS: 27-06-03-04 Appliance cord (data cable)
    Degree of contamination according to EN 60664-1: 3
    Cable Outlet: straight
    Number of pins: 5
    Plug lock: Screw connection(0.4 Nm)
    Insertion Cycles: 100
    Tightening torque: 0.5 Nm
    Dynamic bending radius: 59 mm (to +60°C)
    Static bending radius: 29.5 mm
    Cable ambient temperature (dynamic): -25 … +80 °C
    Cable ambient temperature (static): -40 … +80 °C
    Overvoltage category according to IEC EN 60664-1: II
    Cable length: 25 m
    Cable shielding: Yes, shield on screw terminal(Braid, tinned Cu, coverage 85%)
    Specific Conductor Resistance: max. 57 ?/km (at 20°C)
    Conductor Identification: Color code
    Conductor Cross-section: 0.34 mm²
    Number of conductors: 5
    Fire Behavior: Flammability class according to UL 94 HB
    Sheath Color: black
    Resistance to media: resistant to hydrolysis and microbes
    Drag chain suitability: yes
    UV resistance: limited UV resistance according to DIN EN ISO 4892-2-A
    Conductor End: Sheath stripped 50mm
    Plug connector designation: Socket M12x1, straight, screened
    Halogen-free: yes(according to DIN VDE 0472 part 815)
    Product Number Variant Description
    C-M12F05-05X034PU25,0-MA-124054 : Connecting Cable (No others)
