| Rated impulse voltage Uimp: |
0.8 kV |
| Connection Type: |
Male plug |
| Degree of protection: |
IP67(in the inserted state) |
| Item designation: |

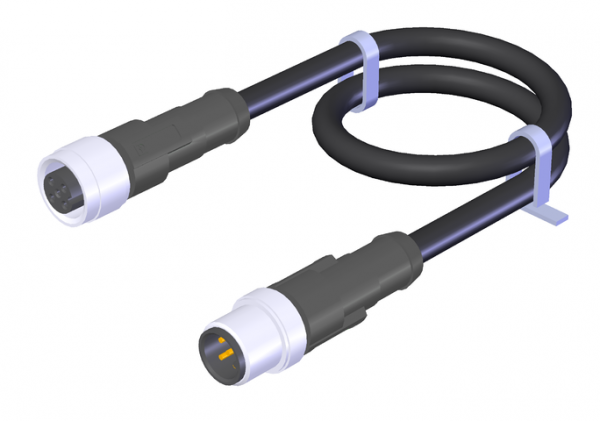

C-M12M08-08X025PV05,0-M12F08-123432 |
| Gross weight: |
0,303kg |
| ECLASS: |
27-06-03-04 Appliance cord (data cable) |
| Rated voltage: |
30 V |
| Degree of contamination according to EN 60664-1: |
3 |
| Cable Outlet: |
straight |
| Number of pins: |
8 |
| Plug lock: |
Screw connection |
| Insertion Cycles: |
100 |
| Tightening torque: |
0.5 Nm |
| Dynamic bending radius: |
15 x cable diameter |
| Static bending radius: |
5 x cable diameter |
| Cable ambient temperature (dynamic): |
-25 … +80 °C |
| Cable ambient temperature (static): |
-40 … +80 °C |
| Overvoltage category according to IEC EN 60664-1: |
III |
| Cable length: |
5 m |
| Specific Inductance: |
0.51 mH/km |
| Specific Capacitance: |
107 nF/km |
| Specific Conductor Resistance: |
78 ?/km |
| Conductor Identification: |
Color code |
| Conductor Cross-section: |
0.25 mm² |
| Number of conductors: |
8 |
| Fire Behavior: |
flame retardant according to UL-Style 2464 |
| Insulating material group: |
I |
| Cable Type: |
straight |
| Sheath Color: |
black |
| UV resistance: |
moderately UV resistant |
