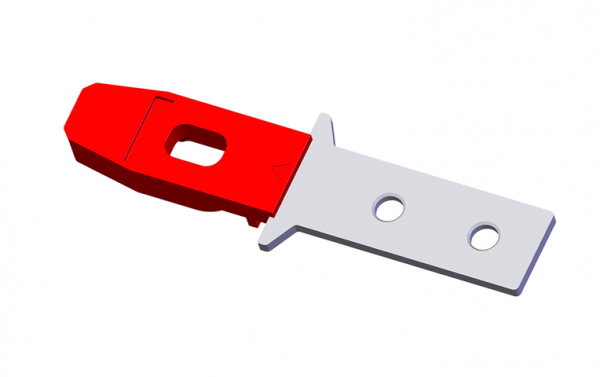

Euchner 122677E | A-C-H-G-LS-122677 : Actuator
The A-C-H-G-LS-122677 actuator offers robust performance and is ideal for automation tasks.
| Attribute | Value |
|---|---|
| Mechanical Life: | 1 x 10? |
| Degree of protection: | IP67/IP69 |
| Ambient temperature: | -20 … +55 °C |
| Item designation: | A-C-H-G-LS-122677 |
| Gross weight: | 0,04kg |
| ECLASS: | 27-27-24-04 Actuator for safety-related proximity switch |
| Power Supply: | Inductive via read head |
| Overtravel: | 5 mm |
| Locking force FZh: | 3000 N(Fzh=Fmax/1.3) |
| Locking force Fmax: | 3900 N |
| Product Number | Variant Description |
|---|---|
| A-C-H-G-LS-122677 : Actuator | (No others) |
