| Connection Type: |
Female plug |
| Degree of protection: |
IP65/IP67(locked) |
| Item designation: |

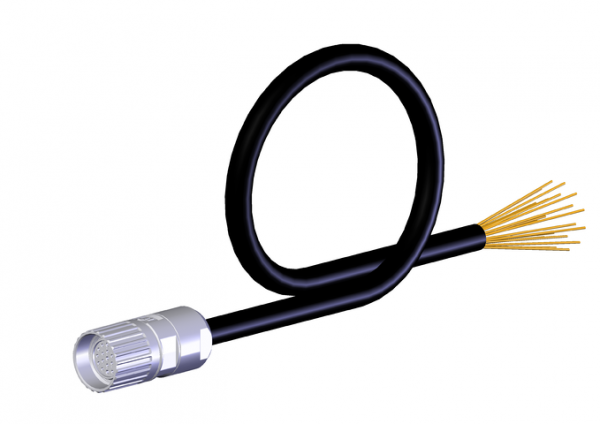

C-M23F19-19XDIFPU40,0-MA-122435 |
| Gross weight: |
7,754kg |
| ECLASS: |
27-06-03-04 Appliance cord (data cable) |
| Degree of contamination according to EN 60664-1: |
3 |
| Cable Outlet: |
straight |
| Number of pins: |
19(16+3) |
| Plug lock: |
Screw connection |
| Insertion Cycles: |
50 |
| Dynamic bending radius: |
10x cable diameter |
| Cable ambient temperature (dynamic): |
-20 … +90 °C |
| Cable ambient temperature (static): |
-40 … +90 °C |
| Overvoltage category according to IEC EN 60664-1: |
II |
| Test voltage: |
1.5 kV |
| Cable length: |
40 m |
| Conductor Identification: |
Numeric code |
| Conductor Cross-section: |
16x 0.5 mm² + 3x 1 mm² |
| Number of conductors: |
19 |
| Fire Behavior: |
flame retardant according to VDE 0472 804 |
| Cable Type: |
straight |
| Sheath Color: |
black |
| Drag chain suitability: |
yes |
| Conductor End: |
Sheath stripped |
| Plug connector designation: |
RC |
