| Rated insulation voltage Ui: |
75 V |
| Rated impulse voltage Uimp: |
0.5 kV |
| Installation Orientation: |
Door hinge DIN right |
| Degree of protection: |
IP54 |
| Item designation: |

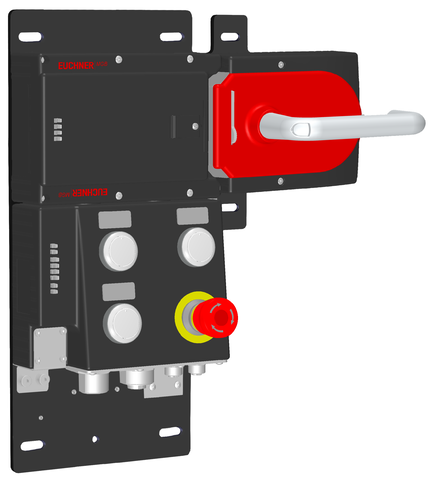

MGB-L1HB-PNC-R-121866 |
| Gross weight: |
5,931kg |
| ECLASS: |
27-27-24-05 Safety-related transponder switch with guardlocking |
| EMC protection requirements: |
In accordance with EN 61000-4 and EN 61326-3-1 |
| Safety Class: |
III |
| Current consumption: |
max. 500 mA |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Switching frequency: |
0.25 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Additional feature: |
incl. lens set, ID no. 120344 |
| Product version number: |
V3.30.10 |
| Transponder coding: |
Multicode |
| Locking force FZh: |
2000 N |
| Guard locking principle: |
Closed-circuit current principle |
| Rated operating distances Sn: |
20 mm(Only applies for use on sliding doors with deactivated guard lock monitoring) |
| Bus Data Protocol: |
Profinet (IEC 61158 type 10) |
| Safety Data Protocol: |
Profisafe (IEC 61784-3-3) |
