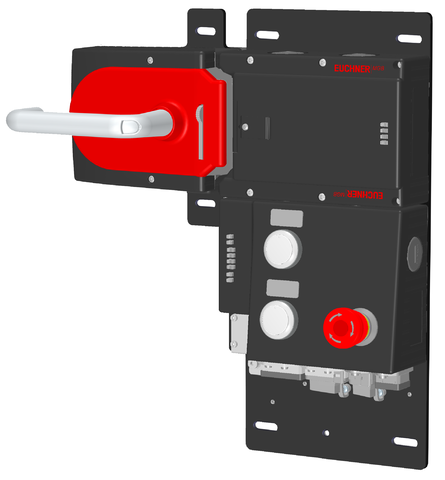

Euchner 121847E | MGB-L1HB-PNA-L-121847 : Multifunctional Gate Box Complete

The MGB-L1HB-PNA-L-121847 is a multifunctional gate box complete, offering robust features for efficient gate management.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 75 V
    Rated impulse voltage Uimp: 0.5 kV
    Installation Orientation: Door hinge DIN left
    Degree of protection: IP54
    Item designation: MGB-L1HB-PNA-L-121847
    Gross weight: 5,048kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    EMC protection requirements: In accordance with EN 61000-4 and EN 61326-3-1
    Safety Class: III
    Current consumption: max. 500 mA
    Degree of contamination (external, according to EN 60947-1): 3
    Switching frequency: 0.25 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Additional feature: incl. lens set, ID no. 120344
    Product version number: V3.30.10
    Transponder coding: Unicode
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Rated operating distances Sn: 20 mm(Only applies for use on sliding doors with deactivated guard lock monitoring)
    Bus Data Protocol: Profinet (IEC 61158 type 10)
    Safety Data Protocol: Profisafe (IEC 61784-3-3)
    Product Number Variant Description
    MGB-L1HB-PNA-L-121847 : Multifunctional Gate Box Complete (No others)
