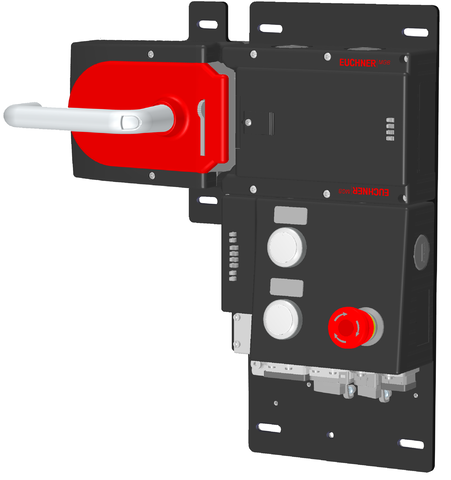

Euchner 121845E | MGB-L2HB-PNA-L-121845 : Multifunctional Gate Box Complete
$8,006.67
Explore the Euchner 121845E | MGB-L2HB-PNA-L-121845 : Multifunctional Gate Box Complete. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 121845E |
| Installation Orientation: | Door hinge DIN left |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP54 |
| Order Number: | 121845 |
| Item designation: | MGB-L2HB-PNA-L-121845 |
| Gross weight: | 5,074kg |
| Customs tariff number: | 85371098 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Product version number: | V3.30.10 |
| Additional feature: | incl. lens set, ID no. 120344 |
| Rated insulation voltage Ui: | 75 V |
| Rated impulse voltage Uimp: | 0.5 kV |
| EMC protection requirements: | In accordance with EN 61000-4 and EN 61326-3-1 |
| Safety Class: | III |
| Current consumption: | max. 500 mA |
| Transponder coding: | Unicode |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | 0.25 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Locking force FZh: | 2000 N |
| Guard locking principle: | Open-circuit current principle |
| Bus Data Protocol: | Profinet (IEC 61158 type 10) |
| Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
