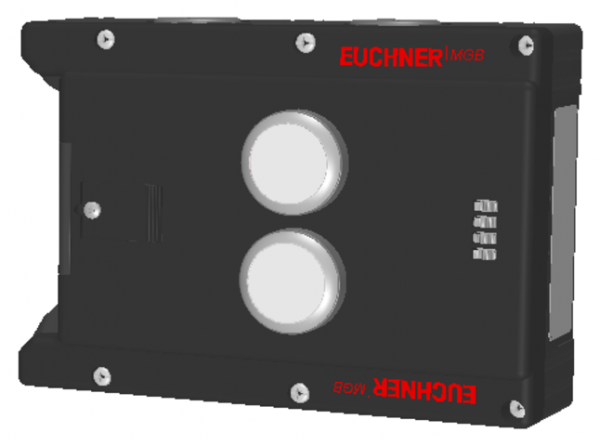

Euchner 121753E | MGB-A-COVER-L-L2-121753 : Mgb Accessories Ab V2.0.0
A left-side cover accessory for MGB systems that offers additional protection and functionality.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 30 V |
Rated impulse voltage Uimp: | 1.5 kV |
Switching current: | 1 … 10 mA |
Connection Type: | Cable entries M20x1.5 |
Installation Orientation: | Door hinge DIN left |
Degree of protection: | IP65 |
Item designation: | MGB-L2-ARA-AL2A1-M-L-121070 |
Gross weight: | 0,994kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Risk time according to EN 60947-5-3: | max. 350 ms |
Risk time according to EN 60947-5-3, extension for each additional device: | max. 5 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Test Pulse Duration: | max. 1 ms |
Test Pulse Interval: | min. 100 ms |
Switching frequency: | 0.25 Hz |
Additional feature: | incl. lens set, ID no. 120344 |
Switching voltage: | UAV |
Product version number: | V4.0.0 |
Occupancy diagram: | L1 |
Transponder coding: | Unicode |
Breaking capacity: | max. 0.25 W |
LED Power Supply: | 24 V DC |
Locking force FZh: | 2000 N |
Guard locking principle: | Open-circuit current principle |
Product Number | Variant Description |
---|---|
MGB-A-COVER-L-L2-121753 : Mgb Accessories Ab V2.0.0 | (No others) |
