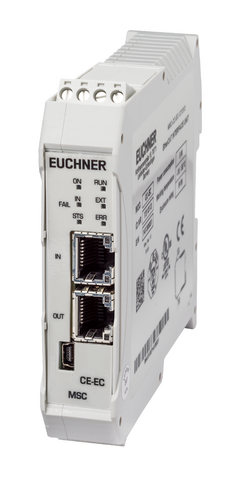

Euchner 121313E | MSC-CE-EC-121313 : Expansion Device, Ethercat Fieldbus
The MSC-CE-EC-121313 is an Ethercat Fieldbus expansion device that facilitates high-speed communication in automation systems.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.5 … 2.5 mm²(Screw terminal) |
| Connection Type: | USB type B – Mini |
| Degree of protection: | IP20 |
| Ambient temperature: | -10 … +55 °C |
| Item designation: | MSC-CE-EC-121313 |
| Gross weight: | 0,2kg |
| ECLASS: | 27-24-22-08 SPS-Kommunikations-Modul |
| Degree of contamination according to EN 60664-1: | 2 |
| Mounting type: | TH 35 mounting rail (EN IEC 60715)(according to EN 60715) |
| Overvoltage category according to IEC EN 60664-1: | II |
| Mission time: | 20 y |
| Atmospheric humidity: | 10 … 95 % rH |
| Dimensions: | 108 x 22.5 x 114.5 |
| Cable length: | max. 3 m |
| Date Interface: | RJ-45 socket |
| Bus Data Protocol: | EtherCAT |
| Power Dissipation: | max. 5 W |
| Storage temperature: | -20 … +85 °C |
| Product Number | Variant Description |
|---|---|
| MSC-CE-EC-121313 : Expansion Device, Ethercat Fieldbus | (No others) |
