| Connection Cross Section: |
0.5 … 2.5 mm²(Screw terminal) |
| Connection Type: |
Plug-in screw terminal(Terminals not included) |
| Degree of protection: |
IP20 |
| Ambient temperature: |
-10 … +55 °C |
| Item designation: |

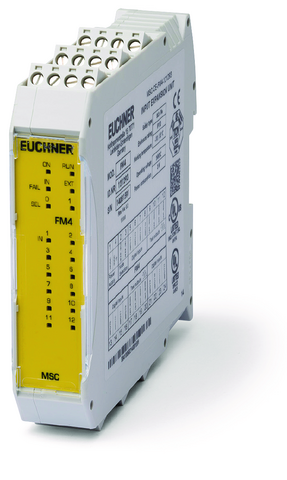

MSC-CE-FM4-121293 |
| Gross weight: |
0,217kg |
| ECLASS: |
27-24-22-05 SPS-Funktions-/Technologie-Modul |
| Degree of contamination according to EN 60664-1: |
2 |
| Mounting type: |
TH 35 mounting rail (EN IEC 60715) |
| Overvoltage category according to IEC EN 60664-1: |
II |
| Performance Level: |
PL e(according to ISO 13849-12006/IEC 620612005) |
| Category: |
4(according to ISO 13849-12006/IEC 620612005) |
| PFHD: |
5.60E-09 1/h(according to IEC 615082010) |
| Mission time: |
20 y(according to ISO 13849-12006/IEC 620612005) |
| Atmospheric humidity: |
10 … 95 % rH |
| Dimensions: |
108 x 22.5 x 114.5(Including screw terminals) |
| Cable length: |
max. 100 m(with length above 50 m, cross-section>use 1 mm²) |
| SIL CL: |
3 |
| Power Dissipation: |
max. 3 W |
| Storage temperature: |
-20 … +85 °C |
