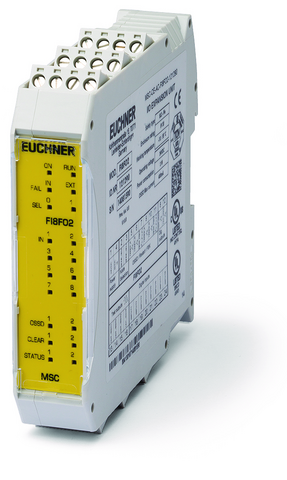

Euchner 121290E | MSC-CE-AC-FI8FO2-121290 : Small Control System Msc Expansion Devic
The MSC-CE-AC-FI8FO2-121290 is a compact control system expansion device designed to enhance system capabilities.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.5 … 2.5 mm²(Screw terminal) |
Connection Type: | Plug-in screw terminal(Terminals not included) |
Degree of protection: | IP20 |
Ambient temperature: | -10 … +55 °C |
Item designation: | MSC-CE-AC-FI8FO2-121290 |
Gross weight: | 0,22kg |
ECLASS: | 27-24-22-04 SPS-Digitales Ein-/Ausgangs-Modul |
Degree of contamination according to EN 60664-1: | 2 |
Mounting type: | TH 35 mounting rail (EN IEC 60715) |
Test Pulse Interval: | 20 ms |
Output Current: | 0 … 400 mA |
Overvoltage category according to IEC EN 60664-1: | II |
Performance Level: | PL e(according to ISO 13849-12006/IEC 620612005) |
Category: | 4(according to ISO 13849-12006/IEC 620612005) |
PFHD: | 5.67E-09 1/h(according to IEC 615082010) |
Mission time: | 20 y(according to ISO 13849-12006/IEC 620612005) |
Atmospheric humidity: | 10 … 95 % rH |
Dimensions: | 108 x 22.5 x 114.5(Including screw terminals) |
Cable length: | max. 100 m(with length above 50 m, cross-section>use 1 mm²) |
SIL CL: | 3 |
Power Dissipation: | max. 3 W |
Storage temperature: | -20 … +85 °C |
Product Number | Variant Description |
---|---|
MSC-CE-AC-FI8FO2-121290 : Small Control System Msc Expansion Devic | (No others) |
