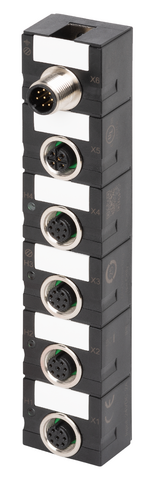

Euchner 120861E | AC-DP-04-SA-120861 : Passive Distribution Module
The Passive Distribution Module facilitates efficient power distribution to multiple devices, optimizing electrical performance in various applications.
| Attribute | Value |
|---|---|
| Rated impulse voltage Uimp: | 0.8 kV |
| Connection Type: | Female plug |
| Degree of protection: | IP67(in the inserted state) |
| Ambient temperature: | -20 … +60 °C |
| Item designation: | AC-DP-04-SA-120861 |
| Gross weight: | 0,193kg |
| Rated voltage: | 18 … 24 … 30 V |
| Number of pins: | 8 |
| Plug lock: | Screw terminal |
| Dimensions: | 151 x 30 x 34.5 |
| Insulating material group: | III |
| Cumulative current: | max. 2 A |
| Product Number | Variant Description |
|---|---|
| AC-DP-04-SA-120861 : Passive Distribution Module | (No others) |
