| Connection Type: |
3 x plug connector M12(5-pin, straight plug connector cable outlet not adjustable.) |
| Number NC contacts: |
3 |
| Number of switching elements: |
6 |
| Number of NO contacts: |
3 |
| Design: |
upright |
| Degree of protection: |
IP67(only screwed tight with the related mating connector.) |
| Ambient temperature: |
-25 … +70 °C |
| Additional information: |
Housing without earth conductor!(All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.) |
| Item designation: |

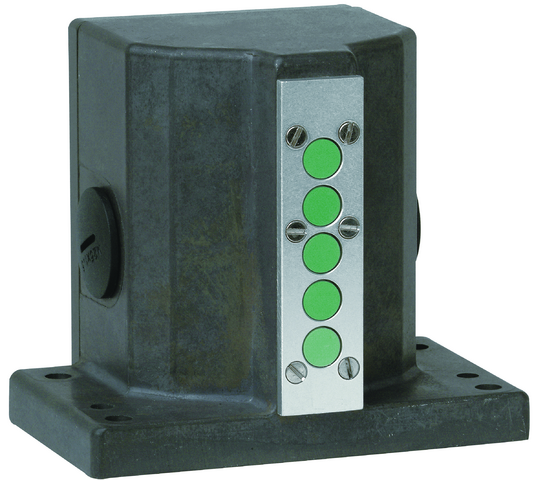

RGBF06X12-732L-MC2409 |
| Gross weight: |
1,03kg |
| ECLASS: |
27-27-06-02 Multi-position switch |
| EMC protection requirements: |
EN 60947-5-2 |
| Safety Class: |
III |
| Output Type: |
PNP |
| Off-state Current Ir: |
max. 0.001 mA |
| Switching hysteresis: |
0.2 … 1.0 mm(when installed) |
| Reverse Polarity Protection: |
yes |
| Operating current: |
max. 5 mA Current consumption without load |
| Rated operating distances Sn: |
5 mm |
| Assured operating distances Sa: |
0 … 4 mm(Dimension applies only to steel (ST37) and to EUCHNER trip dogs of series UX.. / GX..) |
| Rated operating current Ie: |
250 mA |
| Short Circuit And Overload Protection, Pulsed: |
yes |
| Proximity switch spacing: |
12 mm |
| Electrical switching frequency: |
max. 500 Hz |
