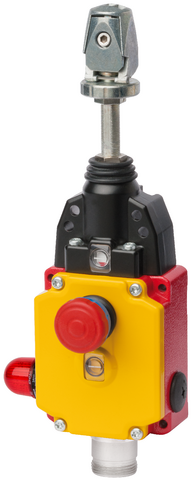

Euchner 119838E | RPS-M-3131SC175BHA10LL024 : Rope Pull Switch
$1,227.78
Explore the Euchner 119838E | RPS-M-3131SC175BHA10LL024 : Rope Pull Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 119838E |
| Connection Type: | Plug connector MR10(10-pin (without PE) – bottom) |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65 |
| Ambient temperature: | -20 … 50 °C |
| Order Number: | 119838 |
| Item designation: | RPS-M-3131SC175BHA10LL024 |
| Gross weight: | 1,227kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-37-12-01 Emergency stop pull cord switch |
| Mechanical Life: | 0.1 x 10? |
| Additional feature: | Emergency stop function |
| Rated insulation voltage Ui: | 50 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Safety Class: | III |
| Fuse: | max. 4 A gG |
| thermal rated current Ith: | 4 A |
| Actuation frequency: | max. 1200 1/h |
| Actuating force: | 175 N |
| Switching principle: | Slow-action switching contact |
| Number of NO contacts: | 2 |
| Number of positively driven contacts: | 2 |
| Rope diameter: | 2 … 5 mm |
