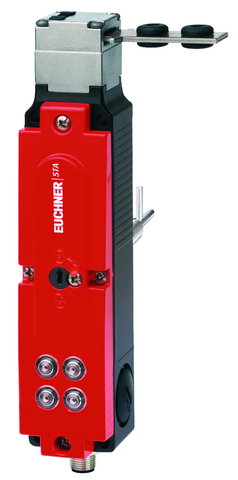

Euchner 119732E | STA3A-4141A024SEM4AS1C1993 : Safety Switch
$1,516.67
Explore the Euchner 119732E | STA3A-4141A024SEM4AS1C1993 : Safety Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 119732E |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -20 … 55 °C |
| Order Number: | 119732 |
| Item designation: | STA3A-4141A024SEM4AS1C1993 |
| Gross weight: | 0,816kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-26-03 Safety switch with guard control |
| Mechanical Life: | 1 x 10? |
| Locking force FZh: | 2300 N |
| Guard locking principle: | Closed-circuit current principle |
| Approach Speed: | max. 20 m/min |
| Extraction Force: | 30 N |
| Actuation frequency: | max. 1200 1/h |
| Actuating force: | 35 N |
| Insertion Depth: | 24.5 mm |
| Retention Force: | 20 N |
| Switching principle: | Slow-action switching contact |
| Overtravel: | 5 mm |
| Solenoid Duty Cycle: | 100 % |
| Locking force Fmax: | 3000 N |
| ASI operating current: | max. 45 mA |
| AS-Interface auxiliary voltage: | 20.4 … 24 … 26.4 V |
| Auxiliary current AS-Interface: | 300 mA |
| AS-Interface protocol: | ASi-3 |
| ASI data out: | D0 = control of guard locking, D1 = red LED, D2 = green LED |
| ASI data in: | D0, D1 = door position, D2, D3 = guard locking |
| AS-Interface slave type: | ID-Code B, EA-Code 7 |
| ASI voltage: | 22.5 … 30 … 31.6 V |
