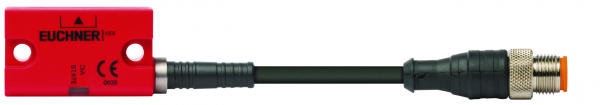

Euchner 119473E | CES-I-AR-U-C04-USA-119473 : Safetyswitch

The CES-I-AR-U-C04-USA-119473 is a safety switch designed to enhance the safety of machinery and equipment by ensuring that operations cease in hazardous conditions.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 75 V
    Rated impulse voltage Uimp: 1.5 kV
    Connection Type: Connecting cable PUR, length 1 m, with plug connector M12, 8-pin
    Installation Orientation: any
    Degree of protection: IP67
    Item designation: CES-I-AR-U-C04-USA-119473
    Gross weight: 0,107kg
    ECLASS: 27-27-24-03 Safety-related transponder switch
    Mounting type: non-flush on metal
    EMC protection requirements: Acc. to EN IEC 60947-5-3
    Risk time according to EN 60947-5-3: max. 260 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 5 ms
    Safety Class: III
    Current consumption: max. 35 mA(without taking into account the load currents on the monitoring output and the safety outputs)
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Rated Conditional Short-circuit Current: 100 A
    Discrepancy time: max. 10 ms
    Off-state Current Ir: max. 0.25 mA
    Test Pulse Duration: max. 1.0 ms(Applies to a load with C<= 30 nF and R<= 20 kohm)
    Test Pulse Interval: min. 140 ms
    Ready Delay: 10 s
    Switching frequency: max. 1 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Notices For UL Approval: Operation only with UL Class 2 power supply or equivalent measures
    Additional feature: Rubber support included
    Switching hysteresis: 1 … 2 mm
    Dynamic bending radius: 10 x cable diameter
    Static bending radius: 5 x cable diameter
    Cable ambient temperature (dynamic): -25 … +65 °C
    Cable ambient temperature (static): -25 … +65 °C
