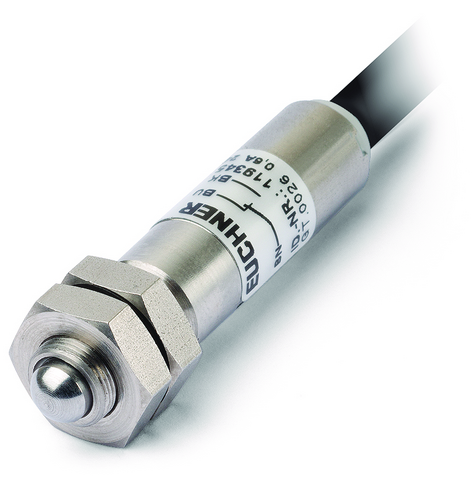

Euchner 119345E | EGM8-1000C2396 : Single Hole Limit Switch
The EGM8-1000C2396 is a single hole limit switch that provides precise position detection for various industrial applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 2A gG |
Approach speed: | 0.01 … 8 m/min |
Connection Type: | PUR cable(three-core) |
Number NC contacts: | 1(Changeover contact) |
Number of NO contacts: | 1(Changeover contact) |
Design: | Thread M8 x 0.5 |
Actuating element: | Rounded plunger(short) |
Actuating force: | 16 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Snap-action switching contact |
Degree of protection: | IP65 |
Ambient temperature: | -20 … +80 °C |
Item designation: | EGM8-1000C2396 |
Gross weight: | 0,086kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Cable length: | 1 m |
Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
Product Number | Variant Description |
---|---|
EGM8-1000C2396 : Single Hole Limit Switch | (No others) |
