| Connection Type: |
Female plug |
| Degree of protection: |
IP67/IP69K(in the screwed tight state) |
| Item designation: |

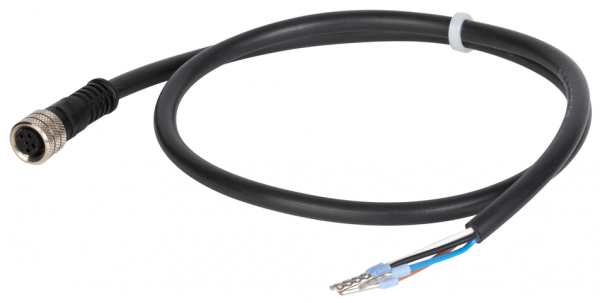

C-M08F04-04X034PU10,0-ES-116050 |
| Gross weight: |
0,312kg |
| ECLASS: |
27-06-03-04 Appliance cord (data cable) |
| Rated voltage: |
36 V |
| Degree of contamination according to EN 60664-1: |
3 |
| Cable Outlet: |
straight |
| Number of pins: |
4 |
| Plug lock: |
Screw connection |
| Tightening torque: |
0.3 Nm |
| Dynamic bending radius: |
10 x cable diameter |
| Static bending radius: |
5 x cable diameter |
| Cable ambient temperature (dynamic): |
-25 … +80 °C |
| Cable ambient temperature (static): |
-40 … +80 °C |
| Test voltage: |
0.8 kV(eff./60 s) |
| Cable length: |
10 m |
| Conductor Cross-section: |
0.34 mm² |
| Number of conductors: |
4 |
| Fire Behavior: |
flame retardant according to IEC 60332-2, VDE 0482-265-2-2, EN 50265-2-2, FT2 |
| Cable Type: |
straight |
| Sheath Color: |
black |
| Drag chain suitability: |
yes |
| Conductor End: |
Cable end sleeve |
| Halogen-free: |
yes(according to IEC 60754-1, VDE 0482-267, EN 50267-2-1) |
