| Rated insulation voltage Ui: |
75 V |
| Rated impulse voltage Uimp: |
1.5 kV |
| Connection Type: |
M8 plug connector, 4-pin |
| Installation Orientation: |
any |
| Degree of protection: |
IP67/IP69K |
| Ambient temperature: |
-25 … +65 °C |
| Item designation: |

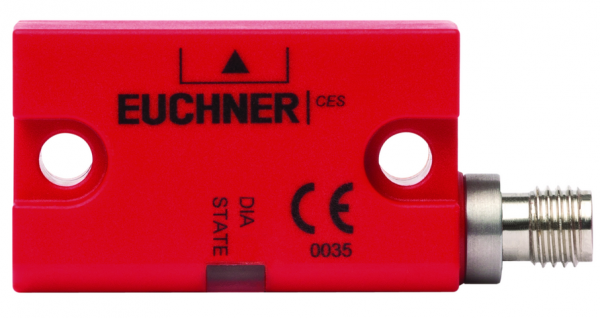

CES-I-AP-U-C04-SK-115324 |
| Gross weight: |
0,064kg |
| ECLASS: |
27-27-24-03 Safety-related transponder switch |
| Mounting type: |
non-flush on metal |
| EMC protection requirements: |
Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3: |
max. 260 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Rated Conditional Short-circuit Current: |
100 A |
| Discrepancy time: |
max. 10 ms |
| Off-state Current Ir: |
max. 0.25 mA |
| Test Pulse Duration: |
max. 0.3 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
| Test Pulse Interval: |
min. 100 ms |
| Ready Delay: |
0.5 s |
| Switching frequency: |
max. 1 Hz |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Notices For UL Approval: |
Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature: |
Rubber support included |
| Switching hysteresis: |
1 … 2 mm |
