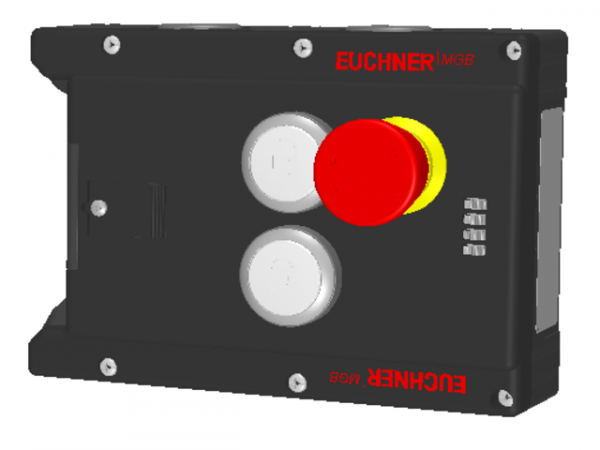

Euchner 115225E | MGB-L1-APA-AG4A1-M-115225 : Multifunctional Gate Box Locking M.

The MGB-L1-APA-AG4A1-M multifunctional gate box locking mechanism provides enhanced security and control for access points.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 30 V
    Rated impulse voltage Uimp: 1.5 kV
    Switching current: 1 … 100 mA
    Connection Type: Cable entries M20x1.5
    Installation Orientation: Door hinge DIN left
    Degree of protection: IP65
    Item designation: MGB-L1-APA-AG4A1-M-115225
    Gross weight: 1,013kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Risk time according to EN 60947-5-3: max. 350 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 0.3 ms
    Test Pulse Interval: min. 100 ms
    Switching frequency: 0.25 Hz
    Switching voltage: 5 … 24 V
    Product version number: V4.0.0
    Occupancy diagram: L1
    Transponder coding: Unicode
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Product Number Variant Description
    MGB-L1-APA-AG4A1-M-115225 : Multifunctional Gate Box Locking M. (No others)
