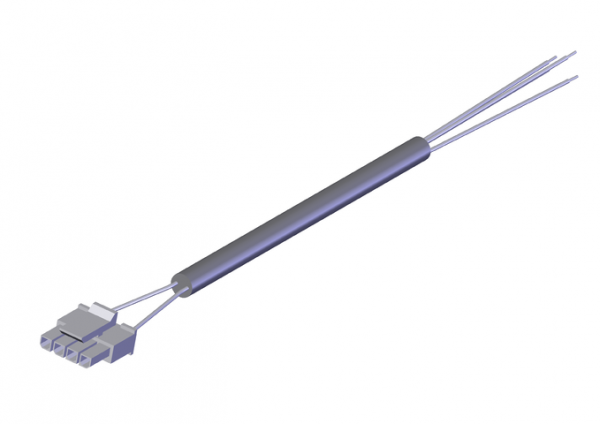

Euchner 115123E | ANSCHLUSSLEITUNG 2M FUER ZXE-111276 : Connecting Cable
The ANSCHLUSSLEITUNG 2M FUER ZXE-111276 is a durable 2-meter connecting cable suitable for various electrical connections.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | none |
| Item designation: | ANSCHLUSSLEITUNG 2M FUER ZXE-111276 |
| Gross weight: | 0,24kg |
| ECLASS: | 27-37-12-92 Befehls- und Meldegerät (Zubehör) |
| Cable Outlet: | straight |
| Number of pins: | 4 |
| Plug lock: | not available |
| Dynamic bending radius: | 20 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -20 … +105 °C |
| Cable ambient temperature (static): | -20 … +105 °C |
| Cable length: | 2.0 m |
| Conductor Cross-section: | 0.34 mm² |
| Number of conductors: | 4 |
| Cable Type: | straight |
| Cable diameter: | 4.8 mm -0,14 … +0,14 mm |
| Conductor End: | Flexible wires tinned |
| Plug connector designation: | Plug connector Molex Microfit |
| Product Number | Variant Description |
|---|---|
| ANSCHLUSSLEITUNG 2M FUER ZXE-111276 : Connecting Cable | (No others) |
