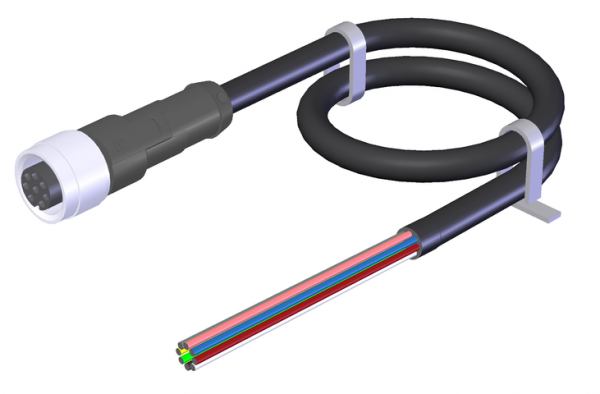

Euchner 115113E | C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable

The C-M12F08-08X025PU10,0-MA-115113 connecting cable is designed for reliable connections in industrial applications, ensuring seamless communication between devices.

Request a quote

    Attribute Value
    Connection Type: Female plug
    Degree of protection: IP67(in the inserted state)
    Item designation: C-M12F08-08X025PU10,0-MA-115113
    Gross weight: 0,484kg
    ECLASS: 27-06-03-04 Appliance cord (data cable)
    Degree of contamination according to EN 60664-1: 3
    Cable Outlet: straight
    Number of pins: 8
    Plug lock: Screw connection
    Insertion Cycles: 100
    Tightening torque: 0.5 Nm
    Dynamic bending radius: 10 x cable diameter
    Static bending radius: 8 x cable diameter
    Cable ambient temperature (dynamic): -25 … +80 °C
    Cable ambient temperature (static): -25 … +80 °C
    Cable length: 10 m
    Conductor Cross-section: 0.25 mm²
    Number of conductors: 8
    Fire Behavior: flame retardant
    Cable Type: straight
    Sheath Color: black
    Drag chain suitability: yes
    Conductor End: Sheath stripped
    Halogen-free: yes(according to DIN VDE 0472 part 815)
    Product Number Variant Description
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU10,0-MA-113188 : Connecting Cable
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU10,0-MA-113189 : Connecting Cable
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU05,0-MA-115112 : Connecting Cable
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU20,0-MA-115114 : Connecting Cable
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU20,0-MA-120998 : Connecting Cable
    C-M12F08-08X025PU10,0-MA-115113 : Connecting Cable C-M12F08-08X025PU20,0-MA-120999 : Connecting Cable
