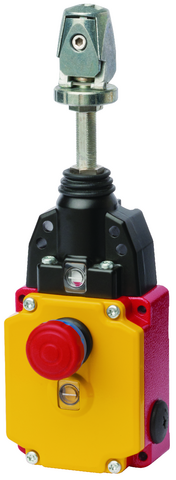

Euchner 114983E | RPS-M-3131SC175M : Rope Pull Switch
$636.67
Explore the Euchner 114983E | RPS-M-3131SC175M : Rope Pull Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 114983E |
| Installation Orientation: | any |
| Storage temperature: | -30 … 80 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -30 … 80 °C |
| Order Number: | 114983 |
| Item designation: | RPS-M-3131SC175M |
| Gross weight: | 1,061kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-37-12-01 Emergency stop pull cord switch |
| Mechanical Life: | 0.1 x 10? |
| Additional feature: | Emergency stop function |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Safety Class: | I |
| Fuse: | max. 6 A gG |
| Connection Cross Section: | 0.5 … 1.5 mm² |
| thermal rated current Ith: | 10 A |
| Actuation frequency: | max. 1200 1/h |
| Actuating force: | 175 N |
| Switching principle: | Slow-action switching contact |
| Number of NO contacts: | 2 |
| Number of positively driven contacts: | 2 |
| Rope diameter: | 2 … 5 mm |
