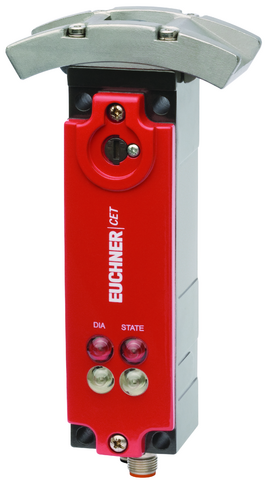

Euchner 114712E | CET4-AR-CDA-CH-50X-SG-114712 : Cet4-Ar

$1,663.33

Explore the Euchner 114712E | CET4-AR-CDA-CH-50X-SG-114712 : Cet4-Ar. Now sold at Venus Automation. Request a quote now!

Request a quote

    Attribute Value
    Product Code: 114712E
    Connection Type: 2 plug connectors M12, 5- and 8-pin
    Installation Orientation: any
    Storage temperature: -25 … 70 °C
    Degree of protection: IP67(In the inserted and screwed tight state)
    Order Number: 114712
    Item designation: CET4-AR-CDA-CH-50X-SG-114712
    Gross weight: 1,23kg
    Customs tariff number: 85365019000
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Mechanical Life: 2 x 10?
    Connecting cable: 30V DC, 2A(for UL requirement UL category code (CYJV/CYJV7))
    EMC protection requirements: Acc. to EN IEC 60947-5-3
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Switching frequency: max. 0.5 Hz
    Shock And Vibration Resistance: Acc. to EN IEC 60947-5-3
    Locking force FZh: 5000 N(FZH = FMAX/1.3)
    Guard locking principle: Open-circuit current principle
    Approach Speed: max. 20 m/min
    Output Type: 2 semiconductor outputs, p-switching, short circuit-proof
    Off-state Current Ir: max. 0.25 mA
    Test Pulse Duration: max. 1 ms
    Risk time according to EN 60947-5-3: max. 400 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 5 ms
    Turn-on time: 400 ms
    Ready Delay: 10 s
    Solenoid Duty Cycle: 100 %
    Locking force Fmax: 6500 N
    Notices For UL Approval: Operation only with UL Class 2 power supply or equivalent measures; see operating instructions
    Switching delay from state change: max. 400 ms
    Degree of freedom X: ±5 mm
    Degree of freedom Y: ±5 mm
    Degree of freedom Z: ±4 mm
