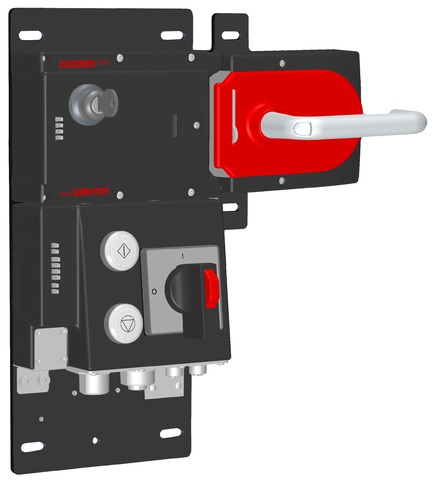

Euchner 113232E | MGB-L0HB-PNA-R-113232 : Multifunctional Gate Box Complete
The Multifunctional Gate Box Complete offers comprehensive functionality for managing automated gates, ensuring safety and efficiency.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 75 V |
Rated impulse voltage Uimp: | 0.5 kV |
Installation Orientation: | Door hinge DIN right |
Degree of protection: | IP54 |
Item designation: | MGB-L0HB-PNA-R-113232 |
Gross weight: | 5,833kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
EMC protection requirements: | In accordance with EN 61000-4 and EN 61326-3-1 |
Safety Class: | III |
Current consumption: | max. 500 mA |
Degree of contamination (external, according to EN 60947-1): | 3 |
Switching frequency: | 0.25 Hz |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Additional feature: | with mounting plate and automatic lockout mechanism |
Product version number: | V3.30.10 |
Transponder coding: | Unicode |
Rated operating distances Sn: | 20 mm(Only applies for use on sliding doors with deactivated guard lock monitoring) |
Bus Data Protocol: | Profinet (IEC 61158 type 10) |
Safety Data Protocol: | Profisafe (IEC 61784-3-3) |
Product Number | Variant Description |
---|---|
MGB-L0HB-PNA-R-113232 : Multifunctional Gate Box Complete | (No others) |
