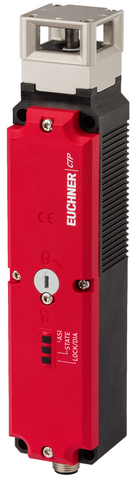

Euchner 113139E | CET3-AR-CRA-AH-50X-SG-C2290-113139 : Cet3 Bowdenzug
$2,001.11
Explore the Euchner 113139E | CET3-AR-CRA-AH-50X-SG-C2290-113139 : Cet3 Bowdenzug. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 113139E |
| Connection Type: | 2 plug connectors M12, 5- and 8-pin |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP67(In the inserted and screwed tight state) |
| Order Number: | 113139 |
| Item designation: | CET3-AR-CRA-AH-50X-SG-C2290-113139 |
| Gross weight: | 1,465kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Mechanical Life: | 2 x 10? |
| Connecting cable: | 30V DC, 2A(for UL requirement UL category code (CYJV/CYJV7)) |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Safety Class: | III |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | max. 0.5 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Locking force FZh: | 5000 N(FZH = FMAX/1.3) |
| Guard locking principle: | Closed-circuit current principle |
| Approach Speed: | max. 20 m/min |
| Output Type: | 2 semiconductor outputs, p-switching, short circuit-proof |
| Off-state Current Ir: | max. 0.25 mA |
| Test Pulse Duration: | max. 1 ms |
| Risk time according to EN 60947-5-3: | max. 400 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: | max. 5 ms |
| Turn-on time: | 400 ms |
| Ready Delay: | 10 s |
| Solenoid Duty Cycle: | 100 % |
| Locking force Fmax: | 6500 N |
| Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
| Switching delay from state change: | max. 400 ms |
| Degree of freedom X: | ±5 mm |
| Degree of freedom Y: | ±5 mm |
| Degree of freedom Z: | ±4 mm |
