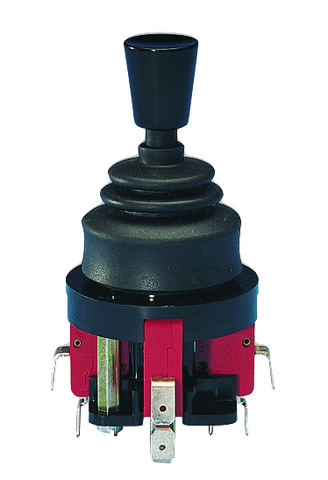

Euchner 112945E | KBT1234RP194 : Joystick
$846.67
Explore the Euchner 112945E | KBT1234RP194 : Joystick. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 112945E |
| Connection Type: | Screw terminal |
| Storage temperature: | -25 … 70 °C |
| Ambient temperature: | -5 … 65 °C |
| Order Number: | 112945 |
| Item designation: | KBT1234RP194 |
| Gross weight: | 0,2kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-37-14-04 Control switch, joystick |
| Mechanical Life: | 2 x 10?(Pushbutton) |
| Additional feature: | All-round actuation |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Fuse: | T10/F20 |
| Switching voltage: | min. 12 V |
| Switching principle: | Changeover contact C, IEC 947-5-1(Snap-action contact element, design ES517A) |
| Mounting cut-out: | D30 (EN IEC 60947-5-1) |
| Number of monitoring contacts: | 4(4 directions) |
| Actuating directions: | 4(Pushbutton) |
